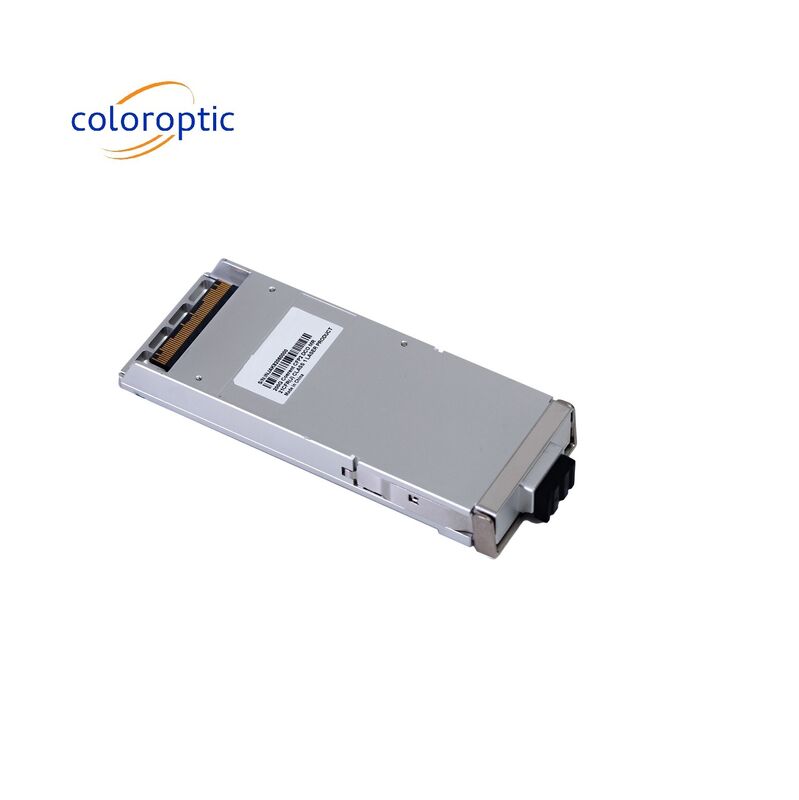

200G MR 200G CFP2 Coherent DCO Transceiver With 7nm NEL DSP Flex Grid

200G MR 200G CFP2 Coherent DCO Transceiver With 7nm NEL DSP Flex Grid

Product Details:

Place of Origin: China
Brand Name: coloroptic
Certification: UL, TUV, CE, RoHS, REACH, CMRT
Model Number: C-C22HCOMC

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: Negotiable
Packaging Details: Plates with Carton
Delivery Time: 7~15 days
Payment Terms: TT, LC, Western Union
Supply Ability: 1000 pieces/month
Get Best Price Contact Now

Detail Information
Data Rate: 200G Wavelength: Coherent
Distance: 80~up Km Connector: Duplex LC
Form Factor: CFP2 Temperature: 0~70°C
DDM: Yes Voltage: 3.3V
Protocals: MSA Warranty: 3 Years
Highlight:

200G CFP2

,

Coherent DCO Transceiver

,

CFP2 DCO Transceiver

Product Description

200G MR Coherent 200G CFP2 DCO Transceivers With 7nm NEL DSP Flex Grid



This is CFP2-DCO pluggable transceiver is a CFP2 MSA-compliant digital coherent optical module designed for line-side trunk DWDM data center interconnect (DCI), metro carrier, and regional/long haul applications. CFP2-DCO module adopts a common C-band flex-grid laser source providing both transmitter and local oscillator signals, calibrated to provide 100 MHz frequency accuracy, and ±6 GHz local off-grid tuning.



Key Features

Supports 100 Gbps DP-QPSK and 200 Gbps, DP-16QAM modulations Flexible client side interfaces supporting: OTL4.4 signaling for OTU4 frames with G.709 FEC and OTU4/ODU monitoring; CAUI-4 signaling for 100G Ethernet with RMON counter module Interoperable staircase FEC and low latency 15% soft decision-FEC support Support for Nyquist spectral shaping and digitally compensated CD and PMD Flex-grid DWDM support with gridless tuning (100 MHz resolution) Embedded PRBS generator/analyzer for line and client interfaces and loopback of incoming and outgoing traffic Standard CFP2 form factor module outline (106 x 41.5 x 12.4 mm) Operating case temperature from 0°C to +70°C Single 3.3 V supply.



Application

100G Ethernet  OTU4 Long-haul Metro DCI 5G Backhaul



Product Details

Parameter

Symbol

Min

Typical

Max

Units

Note

Operating Case Temperature

TOP

0

　

70

degC

　

Operating Input Optical Power of Signal

Psig

-18

　

0

dBm

　

Transmitter output power range

Pout

-5

0

5

dBm

　

Frequency Range

f

191.3

　

196.1

THz

　

Receiver Sensitivity

SEN

　



-21

dBm

　

OSNR sensitivity

OSNR

　

　19.5



dB/0.1nm

　

Power Consumption

　

　

　

24

W

　





200G MR 200G CFP2 Coherent DCO Transceiver With 7nm NEL DSP Flex Grid 0
