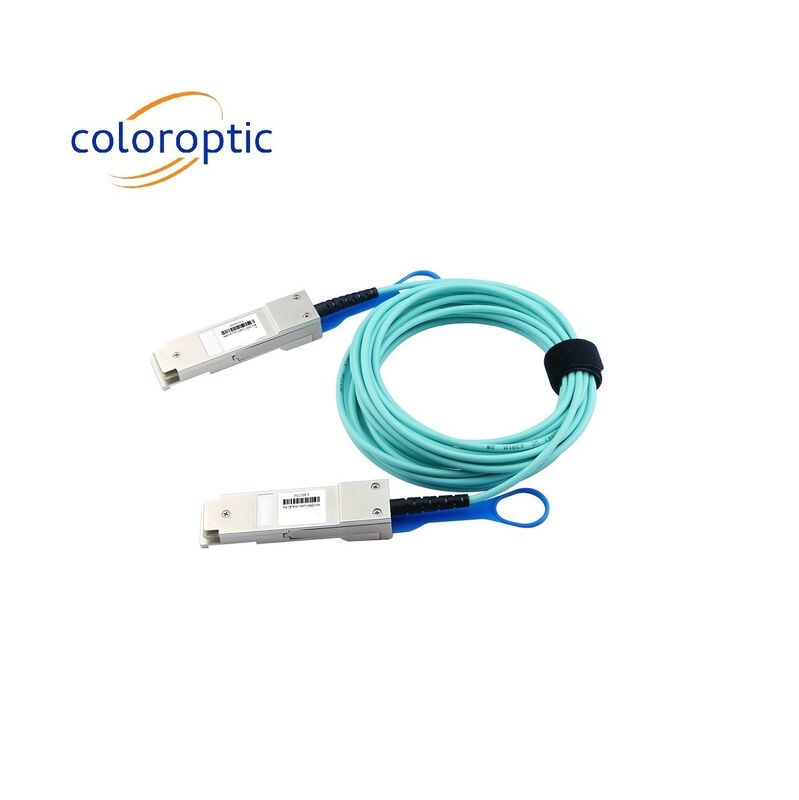

40G QSFP+ 3 - 100m Length AOC Active Optical Cable Infiniband QDR / DDR / SDR
Product Details:
| Place of Origin: | China |
| Brand Name: | Coloroptic |
| Certification: | CE, UL, FDA, RoHs, FC, TUV |
| Model Number: | C-ACQ40-Q40-x |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 per month |
|
Detail Information |
|||
| Cable Type: | AOC | Data Rate: | 40G To 40G |
|---|---|---|---|
| Length: | 1~50m | AWG: | 24AWG |
| Jacket: | PVC | Warrenty: | 3 Years |
| Highlight: | 40G AOC Active Optical Cable,QSFP+ AOC Active Optical Cable |
||
Product Description
AOC Cable 40G QSFP+ 3-100m Lengths - Low Power Consumption Infiniband QDR/DDR/SDR
General Description
The QSFP+ active optic cables are a high performance, low power consumption, short range interconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel, PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. QSFP+ AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
Product Details
| Absolute Maximum Ratings | ||||
| Parameter | Symbol | Min | Max | Unit |
| Storage Ambient Temperature | TSTG | -40 | 85 | ℃ |
| Operating Case Temperature | Tc | 0 | 70 | ℃ |
| Operating Humidity | HO | 5 | 85 | % |
| Power Supply Voltage | Vcc | -0.3 | +3.6 | V |
| Input Voltage | Vin | -0.3 | Vcc+0.3 | V |
Key Features
- Four-channel full-duplex active optical cable
- Transmission data rate up to 11.3Gbps per channel
- High Reliability 850nm VCSEL technology
- Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
- Low power consumption <1.5W
- Operating case temperature -5°C to +70°C
- 3.3V power supply voltage
- RoHS 6 compliant
- Hot Pluggable QSFP form factor
Application
- Infiniband QDR/DDR/SDR
- 40G Ethernet
- Datacenter
- 4G/8G/10G Fiber Channel
