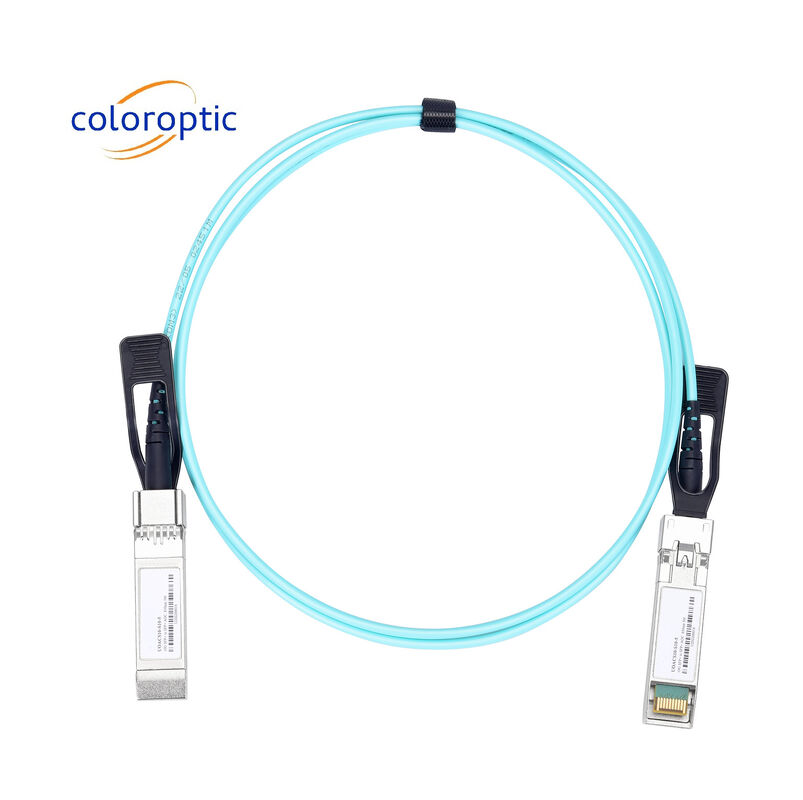

10G SFP+ To 10G SFP+ AOC Ethernet Cable Rack Connection Infiniband QDR / DDR / SDR
Product Details:
| Place of Origin: | China |
| Brand Name: | Coloroptic |
| Certification: | CE, UL, FDA, RoHs, FC, TUV |
| Model Number: | C-ACQ40-Q40-x |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 per month |
|
Detail Information |
|||
| Cable Type: | AOC | Data Rate: | 10G To 10G |
|---|---|---|---|
| Length: | 1~20m | Standard: | SFF-8431 SFF-8432 SFP+ MSA |
| Jacket: | PVC | Warrenty: | 3 Years |
| Highlight: | Rack Connection AOC Ethernet Cable,QDR AOC Ethernet Cable,10G AOC Cable |
||
Product Description
AOC Cable 10G SFP+ To 10G SFP+ In-Rack Connection Infiniband QDR/DDR/SDR
General Description
The SFP+ active optic cables are a high performance, low power consumption, short range interconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel, PCIe and SAS. It is compliant with the SFP+ MSA and IEEE P802.3ba. SFP+ AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
Product Details
| Absolute Maximum Ratings | ||||
| Parameter | Symbol | Min | Max | Unit |
| Storage Temperature | Ts | -40 | +85 | °C |
| Operating Humidity | RH | 0 | 85 | % |
| Supply Voltage | Vcc | -0.5 | 3.6 | V |
| Recommended Operating Conditions | |||||
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature | Tc | 0 | +70 | °C | |
| Supply Voltage | Vcc | 3.14 | 3.3 | 3.46 | V |
| Supply Current | Icc | 250 | mA | ||
| Bit Rate | BR | 10.3125 | 11.3 | Gbps | |
| Electrical Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Transmitter Characteristics | ||||||
| Input differential impedance | Rin | 100 | Ω | 1 | ||
| Differential data input swing | Vin,pp | 180 | 700 | mV | ||
| Transmit Disable Voltage | VD | 2 | Vcc | V | ||
| Transmit Enable Voltage | VEN | Vee | Vee+0.8 | V | ||
| Receiver Characteristics | ||||||
| Differential data output swing | Vout,pp | 300 | 850 | mV | 2,5 | |
| Data output rise time, fall time | tr | 28 | ps | 3 | ||
| LOS Fault | VLOS fault | 2 | VccHOST | 4 | ||
| LOS Normal | VLOS norm | Vee | Vee+0.8 | 4 | ||
Key Features
- Hot-pluggable SFP+ cable ends
- Supports 10.3125Gbps bit rate
- Pre-terminated twin axial cable / fiber cable
- Operating environment temperature -5 ~ 70℃
- Low power consumption
- SFP+ housing with enhanced EMI shielding
- Single 3.3V power supply
- Available in lengths up to 20m
Application
- 10G Ethernet
- 10G Fiber Channel over Ethernet
- Applicable to 1X QDR / 1X DDR / 1x SDR Infiniband
- High capacity IO with SFP+ interface
- Data center and in-rack connection
