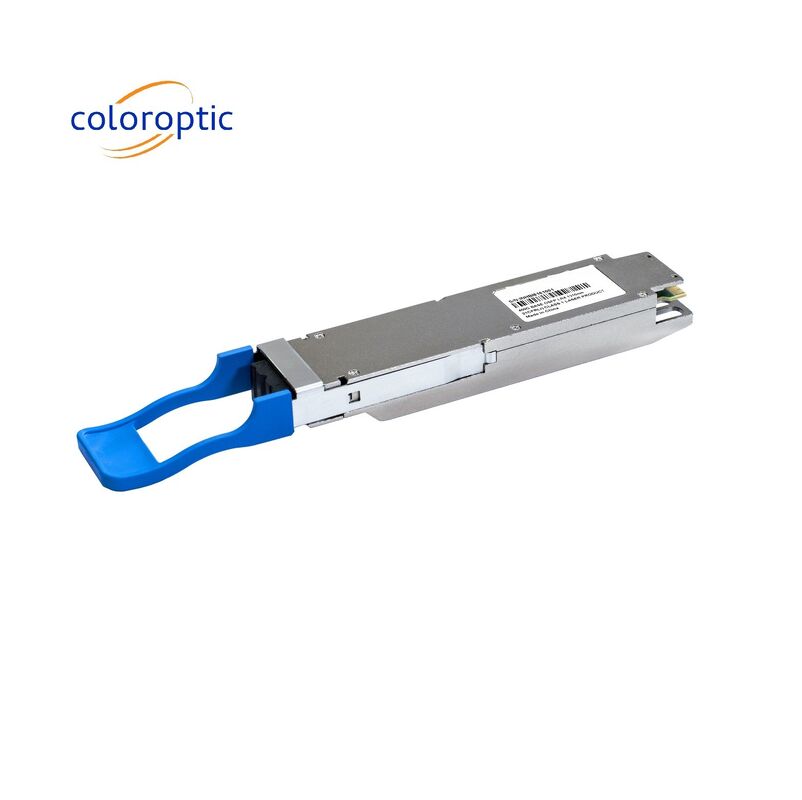

High Speed 10km OSFP Module 400G LR4 1310nm With MPO-12 Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | ColorOptic |
| Certification: | ROHS |
| Model Number: | CO-OS4H13LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Connector: | MPO-12/16 | Operating Temperature: | 0℃ To 70℃ |
|---|---|---|---|
| Relative Humidity: | 5% To 95% | Power Consumption: | 2.5W |
| Compatibility: | IEEE802.3ae | Reach Distance: | 10Km |
| Dimension: | 70mm*42mm*18mm | Wavelength: | 1310nm |
| Highlight: | High Speed OSFP Module,10km OSFP Module,OSFP 400G LR4 |
||
Product Description
OSFP Module 400G LR4 4*100G 1310nm 10km with MPO-12 connector for NVIDIA compatible
Product Description:
The OSFP (Octal Small Form-factor Pluggable) Module 400G LR4 is a high-speed optical transceiver module used for data communication in networking devices.. It is an ideal choice for any organization requiring a reliable and secure optical connection.
Technical Parameters:
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance | D | 0.002 | 2 | km | ||
| Power Consumption | 10 | W | ||||
| Center Wavelength | L0 | 1264.5 | 1271 | 1277.5 | nm | |
| L1 | 1284.5 | 1291 | 1297.7 | nm | ||
| L2 | 1304.5 | 1311 | 1317.5 | nm | ||
| L3 | 1324.5 | 1331 | 1337.5 | nm | ||
| Average Launch Power,each Lane | PAVG | -3.2 | 4.4 | dBm | ||
| OMA, each Lane | POMA | -0.2 | 3.7 | dBm | ||
| Average Receive Power,each Lane | -7.2 | 4.4 | dBm | |||
| Receive Power(OMA),each Lane | 3.7 | |||||
| Receiver Sensitivity(OMA) | SEN | max(-4.6,SECQ-6.0) | dBm |
Applications:
ColorOptic CO-OS4H13LC – OSFP Module for High-Density Data Rates
- Data Center Interconnects: The OSFP Module 400G LR4 is commonly used for high-speed interconnects between data centers, allowing for fast and reliable transmission of large amounts of data over long distances.
- High-Bandwidth Networking: It is suitable for high-bandwidth networking applications, such as backbone networks, where fast and efficient data transfer is essential.
- Telecommunication Networks: The module can be used in telecommunication networks to support high-speed data transmission, enabling fast communication between network nodes.
