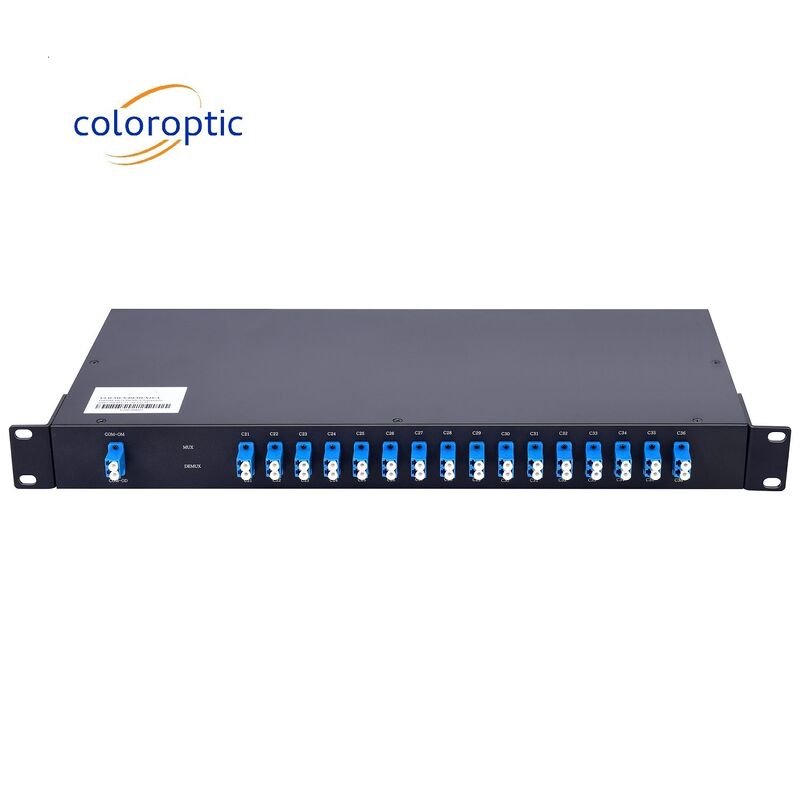

24 Channel DWDM Passive Optical Multiplexer / Demultiplexer 1RU Rack
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | COD-MUX24-U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Fiber Channels: | 24 CH | Insettion Loss: | 4.0dB |
|---|---|---|---|
| Dimension: | 250mm X 483mm X 44mm | Connector: | LC/APC |
| Relative Humidity: | 5% To 95% | Operating Temperature: | 0°C To +70°C |
| Warranty: | 3 Years | Product Name: | WDM Model |
| Highlight: | 24 Channel DWDM,DWDM Passive Optical Multiplexer,24 Channel DWDM Passive Mux |
||
Product Description
WDM Model: 24 Channels Low Insertion Loss DWDM Passive Optical Multiplexer/Demultiplex LC/APC Connectors 1RU Rack
Product Description:
DWDM Model COD-MUX24-U is passive optical multiplexer/demultiplexer, which is made up of AAWG module.
AAWG (Athermal Arrayed Waveguide Grating) module is based on the silica on silicon technology and no electrical power is required.
Features:
- 19inch 1U rack (Unit: mm) Low optical insertion loss Low cost
- Duplex LC connectors
- High channel isolation
- High Stability and reliability
- Operating temperature range: 0℃ to 70℃
Specification:
|
Parameter |
Specifications |
Unit |
||
| Min | Typ | Max | ||
| Channels | 24 | |||
|
Insertion Loss |
5.0 |
5.5 |
dB | |
| dB | ||||
| Channel Spacing | 100 | GHz | ||
| Channel Bandwidth | λC± 0.11 | nm | ||
| Adjacent Channel Isolation | 25 | dB | ||
| Non-Adjacent Channel Isolation | 30 | dB | ||
| Return Loss | 40 | dB | ||
| ITU Frequency | 192 | 195.9 | THz | |
| Center Frequency Accuracy | 50 | 50 | pm | |
| Insertion Loss Uniformity | 1 | dB | ||
| Ripple | 0.5 | dB | ||
| 1dB Bandwidth | 0.4 | nm | |||
| 3dB Bandwidth | 0.6 | nm | |||
| Polarization Dependent Loss | 0.5 | dB | |||
| Polarization Mode Dispersion | 0.5 | ps | |||
| Chromatic Dispersion | – 20 | 20 | ps/nm | ||
Customization:
Color Optic COD-MUX24-U 24CHANNELS MUX
- Brand Name: Color Optic
- Model Number: COD-MUX24-U
- Place of Origin: China
- Fiber Channels: 24 CH
- Connector: LC/APC
- Weight: 0.5kg
- Storage Temperature: -40°C To +85°C
- Warranty: 3 Years
- Power Consumption: 2W
The Color Optic CO-CMUX8CH 16CHANNELS MUX is a high-performance, cost-effective solution for 16-channel MUX applications. It features LC/APC connector, low power consumption of only 2W, storage temperature between -40°C and +85°C, and a 3-year warranty.
Packing and Shipping:
Packaging and Shipping for WDM Model
WDM Model products must be properly packaged and shipped to ensure they remain in good condition. The following are the packaging and shipping requirements for WDM Model products:
- All WDM Model products must be packaged in a sturdy cardboard box and sealed with a quality packing tape.
- All WDM Model products must be labeled with the appropriate shipping information. This includes the product name, order number, and
