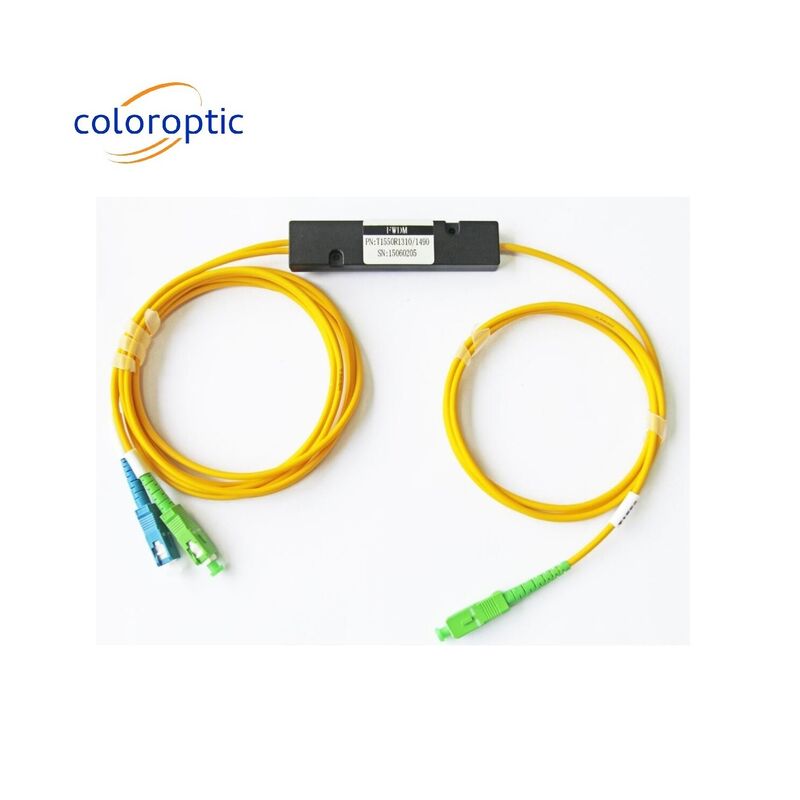

High Channel Isolation Wdm Model Fiber Optic Fwdm Device For Catv Access Network
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-FWDMC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 50000 pieces/month |
|
Detail Information |
|||
| Connect Fiber: | SMF | Wavelength: | FWDM1550/ 1310±50/1490 |
|---|---|---|---|
| Type: | Optical Networking | Storage Temperature: | -40°C To +85°C |
| Reflection Bandwidth(0.5dB): | 0.4 | Product Name: | Passive FWDM |
| Relative Humidity: | 5% To 95% | Weight: | 0.5kg |
| Highlight: | High Channel WDM Model,Fiber Optic WDM Model |
||
Product Description
Wdm Model High Channel Isolation Fiber Optic Fwdm Device For Catv Access Network Lc Connector
Product Description:
Wavelength-Division Multiplexing Module (FWDM).
Features:
| Parameters | 1×2 FWDM Device | |
| Operating Wavelength Range (nm) | N/A | |
| Pass wavelengths band[λc] (nm) | 1550+/-30 | |
| Reflection wavelengths band[λc] (nm) | 1310±50/1490+/-10 | |
| Pass Channel Insertion Loss (dB) | ≤0.60 | |
| Reflection Channel Insertion Loss (dB) | ≤0.40 | |
| Channel Ripple (dB) | ＜0.3 | |
|
Isolation (dB) |
Pass Channel | ＞30 |
| Reflection Channel | ＞20 | |
| Insertion Loss Temperature Sensitivity (dB/℃) | ＜0.005 | |
| Polariation Dependent Loss (dB) | ＜0.1 | |
| Polarization Mode Dispersion (ps) | ＜0.1 | |
| Return Loss (dB) | ＞50 | |
| Directivity (dB) | ＞55 | |
| Connector Type | COM,1550:SC/APC 1310/1490:SC/UPC | |
| Fiber Length (m) | 1.0 | |
| Fiber type | Corning Single mode SMF-28 | |
| Maximum Optical Power (mw) | 300 | |
| Operating Temperature (℃) | -20～+75 | |
| Storage Temperature (℃) | -40～+85 | |
| Package Dimension (mm) | 5.5*34 | |
Applications:
- Line monitoring
- Telecom munication
- Cellular Application
- Fiber optical Amplifier
- Access Network
Packing and Shipping:
The WDM Model products should be packaged and shipped as follows:
- Ensure that the product is securely wrapped in a bubble wrap or other protective material.
- Place the product in a box or other container with an appropriate cushioning material.
- Seal the product in the box or container with a strong adhesive tape.
- Label the box or container with the appropriate shipping information.
- Securely attach the shipping label to the box or container.
- Send the product to the designated destination.
